Audio-Technica AT-SUT100 MC Step-Up Transformer
| Availability: | On backorder |
| Delivery time: | Though we don't regularly stock this item, we can usually get it to you pretty darn fast! We will send an update with ETA once ordered. |
Employing the finest materials and production methods, the AT-SUT1000 MC step-up transformer is built to deliver unaltered sound from a moving coil phono cartridge for the best analog listening experience possible. It features a special hand-wound, large-core transformer that is capable of a wide range of voltages, making it ideal for stepping up low-impedance moving coil cartridges.
The transformer maintains a balanced signal from the moving-coil cartridge through to the phono preamp. Or users can opt for an unbalanced connection, if desired. The AT-SUT1000 utilizes HANENITE rubber mounting to suppress vibrations and permalloy magnetic shielding to block external noise.
Features
- A high-quality MC step-up transformer, compatible with balanced and unbalanced connections
- Special hand-wound, large-core transformer is capable of a wide range of voltages, making it ideal for stepping up low-impedance moving coil cartridges
- Transformer maintains balanced signal from the cartridge through to the phono preamp (RCA input and output are also available)
- Utilizes HANENITE rubber mounting to suppress vibrations and permalloy magnetic shielding to block external noise
Specifications
Frequency response
10 - 200 kHz (-3 dB to +1 dB at 3.0 ohms)
10 - 60 kHz (-3 dB to +1 dB at 10 ohms)
10 to 40 kHz (-3 dB to +1 dB at 17 ohms)
Input/output: Stereo right/left

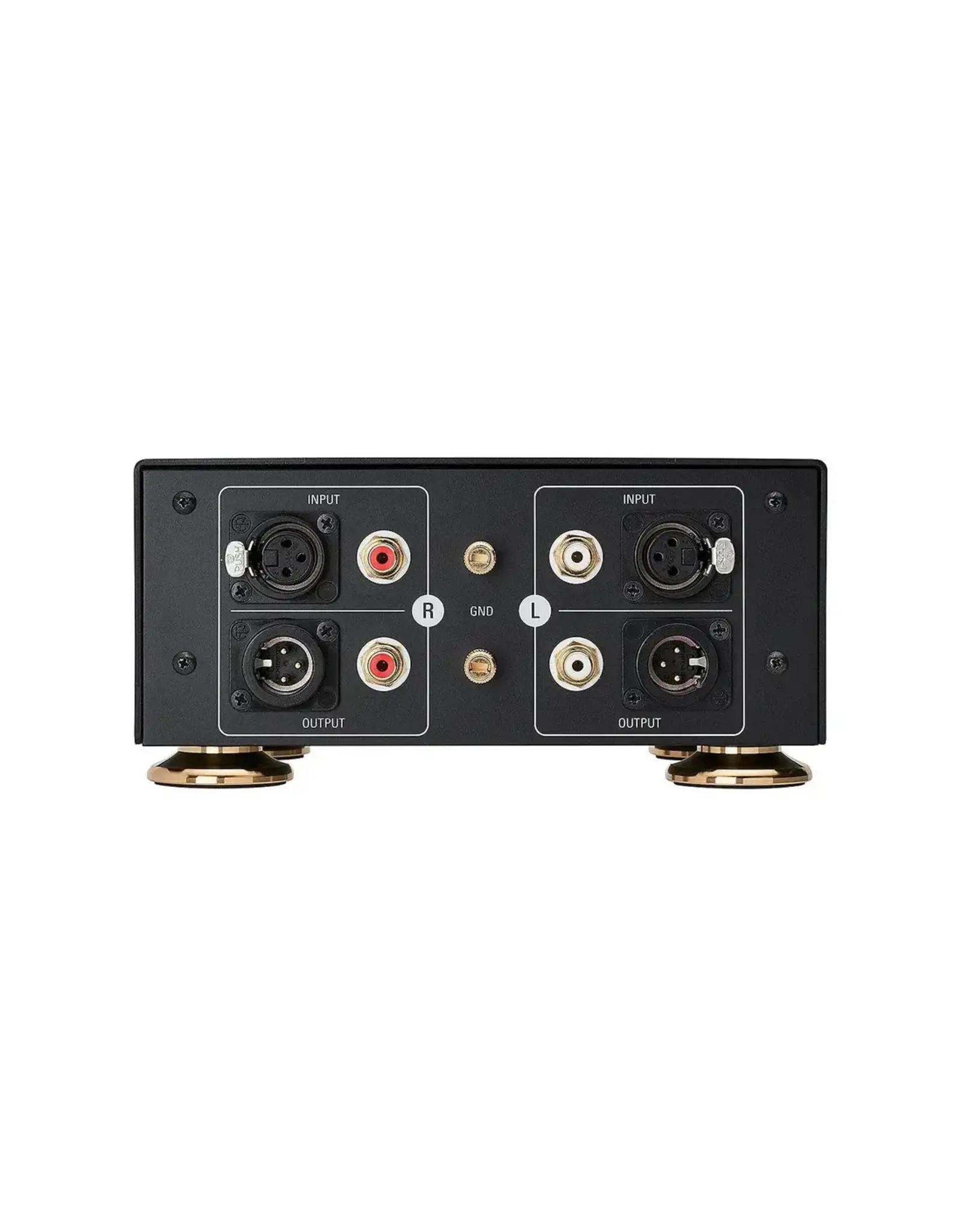

Input/output terminal: RCA or XLR (2: hot)
Step-up ratio: 22 dB
Supported cartridge: 2 to 17 ohm
Recommended load impedance: 47,000 ohm
Channel balance: 0.5 dB or less
Channel separation: 100 dB or more
Dimensions (HWD): 3.6" x 7.7" x 5.9" 92 mm × 196 mm × 150 mm, excluding protrusions
Weight: 11 lb (5 kg)
Supplied accessories: 1 m (3.3') ground wire
